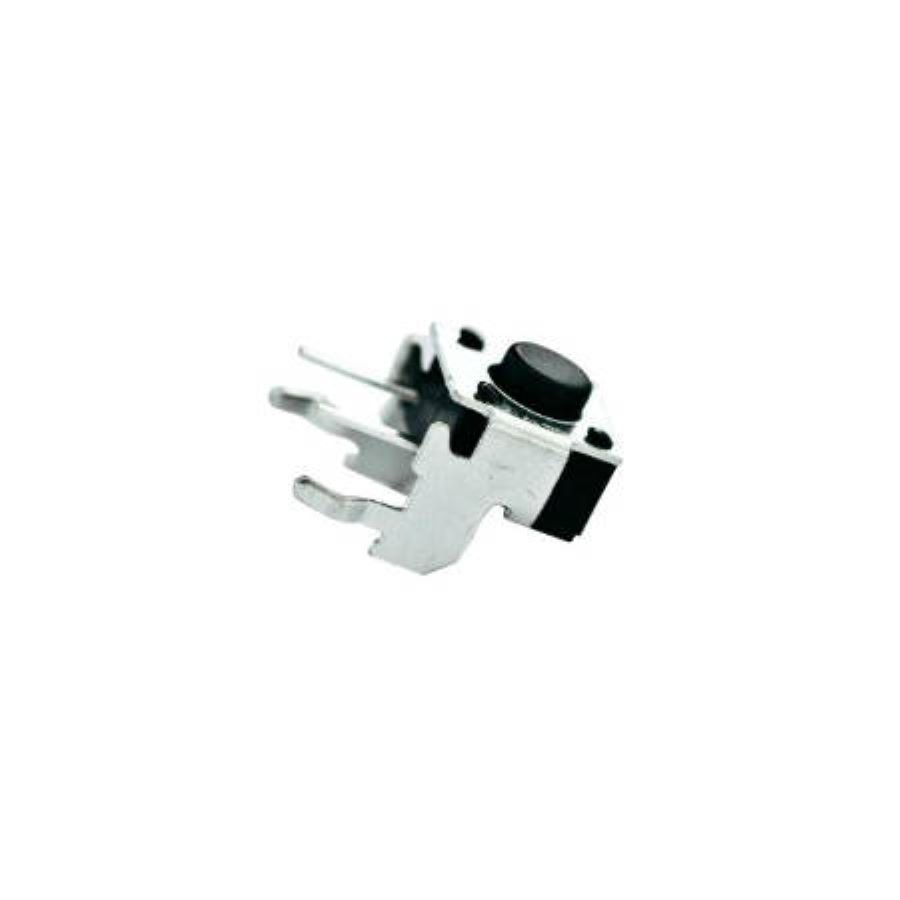

2-1825027-0
Manufacturer:
TE Connectivity
Mfr.Part #:
2-1825027-0
Datasheet:
Description:
Pushbutton Switches Through Hole SPST Off-Mom Round Illuminated, Non-Illuminated Switch Current Rating:50 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 7.11 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Height | 7 mm |
| Circuit Type | SPST |
| Packaging | Reel |
| Depth | 10 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Silver |
| Type | Switch |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Illumination Color | Black |
| ELV | Compliant |
| Actuator Length | 9.24 mm |
| Throw Configuration | SPST |
| Housing Material | Nylon |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.57 N |
| Switch Travel | 250 µm |
| Actuator Material | Nylon |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Round |
| Termination Style | Solder Pin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Cap Color | Black |
Stock: 11639
Distributors
pcbx
pcbxUnit Price$0.13764
Ext.Price$0.13764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13764 | $0.13764 |
| 10 | $0.11969 | $1.19690 |
| 50 | $0.11219 | $5.60950 |
| 100 | $0.10516 | $10.51600 |
| 500 | $0.09746 | $48.73000 |
| 1000 | $0.08550 | $85.50000 |
| 3000 | $0.08307 | $249.21000 |
| 5000 | $0.08071 | $403.55000 |
